How to Replace Aerator Tines on Manual, Drum and Reciprocating Aerators

Last updated: October 2026 · Written by the LawnVibe editorial team.

Tines are the wear part on every core aerator. Sooner or later, they get too short to reach the compacted layer, crack, bend or rust through, and no amount of sharpening brings them back. Knowing how to replace aerator tines keeps an older machine pulling deep, clean plugs instead of skimming the surface. This guide covers how to tell when tines are finished, how to measure and order the right replacements and step-by-step swaps for manual, drum, reciprocating and tow-behind aerators.

If your tines are only dull, see our guide on how to sharpen aerator tines first.

Signs your tines need replacing

A quick test: aerate a strip of moist lawn and measure the cores. If they are well under 2 inches long when the soil is properly moist, worn tines are a likely cause.

Before deciding, clean the tines and look at them in good light. Dirt and surface rust can hide cracks, and a tine that looks fine when caked with soil may turn out to be split at the base. Compare each tine against a new one or the length listed in the manual, and check every tine rather than assuming they all wear evenly. On drum machines, tines on the ends often wear differently from those in the middle.

Measure and order the right tines

The easiest route is to find the model number on the aerator's label or in the manual and order the manufacturer's replacement tines. If you cannot find a part number, remove one tine and take it with you, or measure carefully. Aftermarket tines are available for many popular machines, but check the dimensions and mount type before buying.

How tine wear affects your lawn

Worn tines do more than slow you down. Short tines pull shallow cores that miss the compacted layer, so roots, water and air gain little. Damaged tips crush soil around each hole instead of cutting it, which can add to compaction on clay. Bent tines tear turf as they enter and leave the ground, and loose tines can fall out on the lawn, where a mower may later hit them. Replacing worn tines restores the full benefit of aeration and makes the work easier.

Keep spare tines on hand

If you own an aerator and use it every year, buying a spare set of tines is worthwhile. Tines can bend or break mid-job, especially in rocky soil, and having replacements ready avoids a wasted day waiting for parts. Store spare tines oiled and wrapped in a dry place.

Tools you may need

• Wrenches or a socket set
• Penetrating oil for stuck bolts
• A wire brush
• Pliers
• A hammer and punch, for some press-fit or clip designs
• Thread-locking compound, if the manual recommends it
• Work gloves and eye protection

Safety first

Tine work puts your hands close to sharp metal and heavy parts, so prepare the machine properly.

• Manual tools: clamp the aerator so it cannot tip.
• Gas aerators: shut off the engine, let it cool and disconnect the spark plug wire.
• Electric aerators: unplug them. Battery models: remove the battery.
• Tow-behind units: unhitch, remove weights and support the frame securely before working underneath.

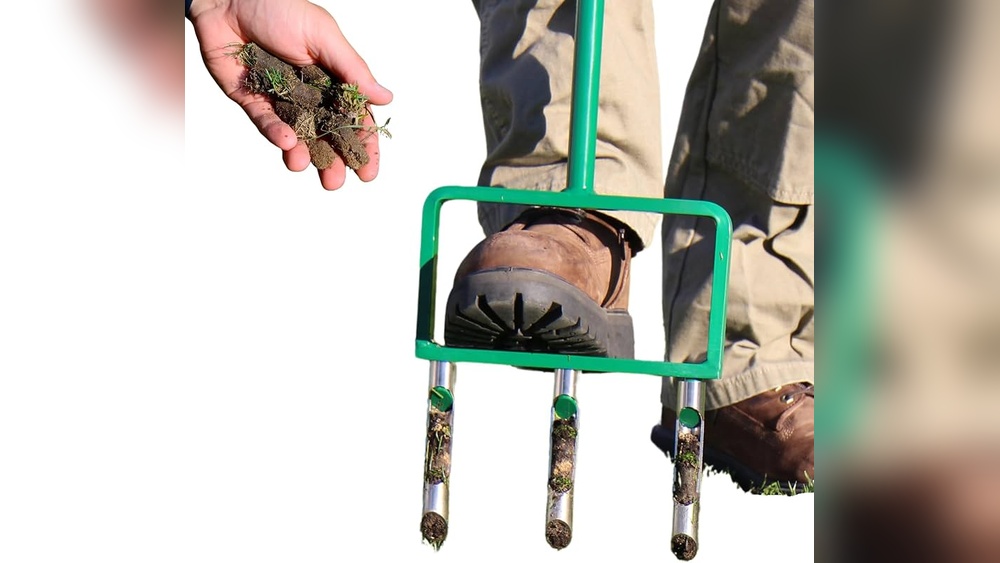

Replacing tines on a manual core aerator

Many manual aerators have bolt-on tines; some have tines welded to the frame.

1. Clamp the tool with the tines accessible.
2. Clean the mount area with a wire brush.
3. Apply penetrating oil to rusty bolts and let it soak.
4. Remove the bolts and pull the old tines.
5. Clean the mount and check for cracks.
6. Fit the new tines, aligning them the same way as the originals, with any side-eject slots facing the same direction.
7. Tighten the bolts firmly, using thread locker if recommended.
8. Oil the new tines to prevent rust.

If the tines are welded, replacement typically requires cutting and welding, which is rarely worth it for a homeowner. A new tool is usually more practical. See our guide on manual aerator maintenance for keeping the next one in good shape.

Replacing tines on a drum core aerator

Plan for this job to take longer than on a manual tool, since a drum can have dozens of tines.

Drum aerators have many tines mounted on a rotating drum or on several tine wheels along a shaft.

1. Disable the machine and remove weights.
2. Tip or raise the machine as the manual describes, keeping the engine's air filter and carburetor side up on gas models.
3. Rotate the drum to access each tine, marking your starting point with tape.
4. Remove tine fasteners, which may be bolts, clips or pins.
5. Replace tines one row at a time so you keep track of orientation.
6. Tighten all hardware and spin the drum by hand to check for wobble.

Replacing the full set at once keeps every tine at the same length so the drum rolls evenly and cores are consistent.

Keep removed hardware in a container or magnetic tray, sorted by position, so everything goes back where it came from.

Replacing tines on a reciprocating aerator

Reciprocating aerators drive tines straight down from tine holders.

1. Disable the engine and let it cool.
2. Raise the tines to the transport position.
3. Loosen the tine holder bolts or clamps.
4. Slide out the old tines and insert new ones to the depth or mark shown in the manual.
5. Tighten the holders to the specified torque.
6. Check alignment so tines enter the soil straight.

Replacing tines on a tow-behind aerator

Take a photo of the assembly before you start so you can match the order of plates and spacers.

Tow-behind units often use spoon-shaped tines or star-shaped tine plates on a shaft.

1. Unhitch and remove weights.
2. Support the frame securely on stands or blocks.
3. Remove the shaft retaining hardware if needed to slide tine plates off.
4. Replace worn tines or plates and keep spacers in the correct order.
5. Reassemble and tighten, then check that the shaft turns freely.

Dealing with stuck or rusted hardware

Old tine bolts are often rusted in place. To free them without damage:

• Soak with penetrating oil and give it time, ideally several hours or overnight.
• Use the right size wrench or socket to avoid rounding off bolt heads. Six-point sockets grip better than twelve-point.
• Tap the bolt head lightly with a hammer to break the rust bond.
• Use a breaker bar for leverage rather than a longer, flexible wrench.
• Cut off hopeless bolts with a hacksaw or rotary tool and replace them with new hardware of the correct grade.

Replace any rusty or damaged bolts, nuts and washers while you have the tines off. Fresh hardware tightens properly and is easier to remove next time.

Common replacement mistakes

• Ordering by appearance instead of model number or measurements.
• Mixing old and new tines on a drum, which leads to uneven depth.
• Installing tines backward, so side-eject slots face the wrong way and plugs jam.
• Overtightening small bolts until threads strip or tine holders crack.
• Undertightening, so tines work loose during aeration.
• Skipping the test strip, which is the only way to confirm the job worked.
• Reusing rusty hardware that will seize again next time.

How often tines need replacing

There is no single answer, because wear depends heavily on soil and how much ground the aerator covers. A homeowner aerating one loam lawn each year may get many seasons from a set of tines, while a machine shared among several neighbors on sandy or rocky soil may need new tines much sooner. Measuring tine length at the start of each season is the most reliable way to know when they are due.

Original vs aftermarket tines

Original manufacturer tines are designed for the machine and usually fit exactly. They can cost more and may take time to order for older models.

Aftermarket tines are available for many popular aerators and are often cheaper. Quality varies. Check the steel quality, hardness, dimensions and mount style, and read reviews from owners of the same machine.

For rentals and commercial machines, original tines are usually the safer choice, since a poor fit can damage tine holders or cause tines to loosen during use.

Extending the life of new tines

• Aerate at the right soil moisture so tines are not forced into hard ground.
• Avoid rocky areas and surface roots where possible.
• Clean tines after every use so soil does not dry inside.
• Oil tines before storage to prevent rust.
• Sharpen lightly when tips round over, before they are badly worn.
• Remove weights during transport and storage to reduce stress on the drum and shaft.

When to replace the aerator instead

Replacing tines makes sense when the rest of the machine is sound. Consider a new aerator if the frame is cracked, the drum or shaft is bent, bearings are worn, the engine needs major work or replacement tines are no longer available. Our roundup of the best aerators for DIY compares models with easy-to-replace tines.

Test after replacing

Aerate a test strip of moist lawn and measure the cores. New tines should pull plugs close to their full length. If cores are still short, check soil moisture and machine weight; our guide on aerator not penetrating soil covers other causes.

University extension services, such as Penn State Extension, offer guidance on aeration depth and the benefits of pulling full-length cores.

The bottom line

Replace aerator tines when they are short, cracked, sharply bent, deeply rusted or will not stay tight. Identify the model and part number or measure length, diameter and mount type, then make the machine safe, remove the old tines, clean the mounts and install the new ones in the same orientation. Replace full sets on drum and reciprocating machines for even depth, oil the new tines and test on moist soil to confirm you are pulling full-length cores.
