Drip Irrigation Head Assembly: How to Connect Drip to an Outdoor Faucet

Last updated: October 2026 · Written by the LawnVibe editorial team.

The few inches of fittings between your outdoor faucet and the first drip line decide whether a drip system works well or fails within weeks. Put the parts in the wrong order, skip the filter or forget the pressure regulator and you get clogged emitters, blown fittings or water backing into your plumbing. This guide explains the drip irrigation head assembly: what each component does, the right order to connect them, how to assemble it step by step and how to keep it working season after season.

For planning the rest of the system, see our guide on how to set up drip irrigation.

Why the head assembly matters

Drip irrigation runs at low pressure through small openings, so it is much more sensitive to water quality and pressure than a garden hose or sprinkler. The head assembly adapts household water to those needs: it protects your drinking water, removes particles and steps pressure down. Getting it right once means the rest of the system can run for seasons with little attention.

What goes into a drip head assembly

Many drip kits bundle these parts together, and some combine two functions in one component, such as a filter with a built-in regulator. Check what your kit includes before buying extras.

The right order

Order matters because each part protects the ones after it.

The logic behind the order:

• The timer goes first at the faucet, so it controls flow to everything downstream.
• The backflow preventer comes next, protecting household water from anything downstream.
• The filter comes before the regulator, so grit is removed before it can damage the regulator or clog emitters.
• The regulator comes last before the tubing, so the drip line receives reduced pressure.

If your kit or local code specifies a different order, follow those instructions.

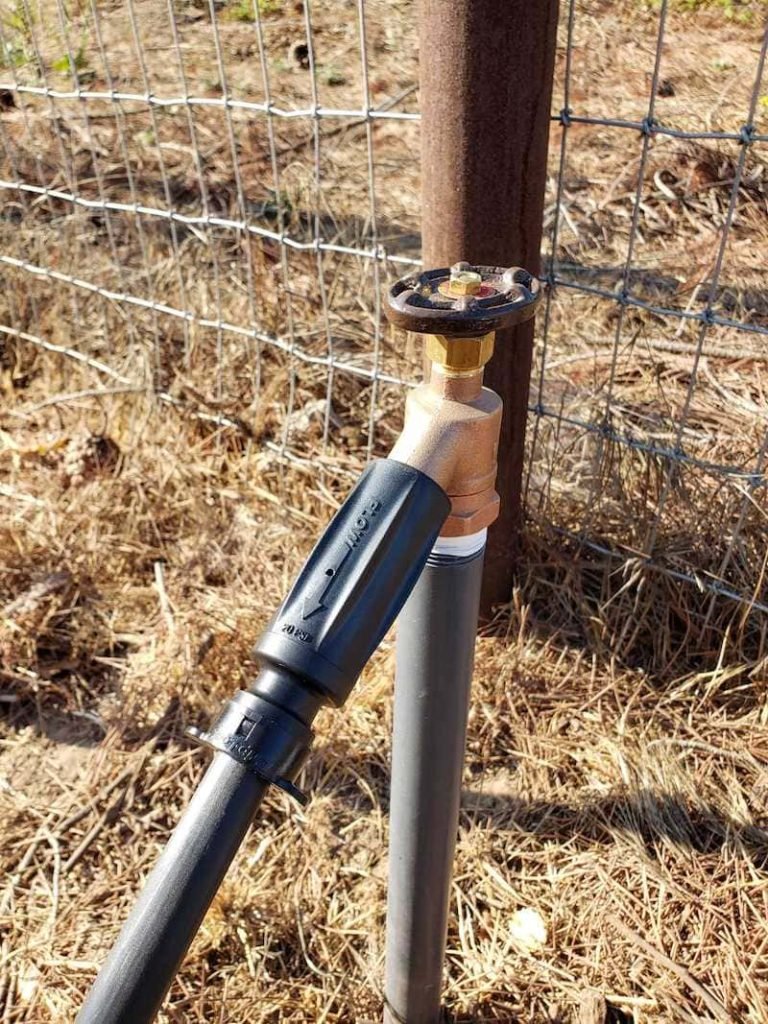

How to assemble the drip irrigation head assembly

Step 1: Check the faucet

Start with a sound water source. Turn the faucet on and off and check for leaks at the handle and spout. Replace washers or the faucet if it drips. A leaking faucet wastes water and can loosen the assembly.

Step 2: Install the timer (optional)

Thread a hose timer onto the faucet by hand, using the rubber washer provided. Do not overtighten plastic threads. Our guide on installing a hose timer covers programming and battery care.

Step 3: Add the backflow preventer

This part protects your household water supply. Thread the backflow preventer or vacuum breaker onto the timer or faucet. Check the flow arrow so it points away from the faucet.

Step 4: Add the filter

Choose a filter you can open easily, since you will clean it often. Thread on the filter with its flow arrow pointing downstream. Screen filters are common for drip; finer mesh traps smaller particles but needs more frequent cleaning.

Step 5: Add the pressure regulator

Check that its outlet pressure suits your tubing. Thread on the pressure regulator with its arrow pointing downstream. Regulators are rated for a specific outlet pressure; drip kits usually include one suited to their tubing and emitters.

Step 6: Attach the tubing adapter

Cut the tubing end square before inserting it so it seals properly. Thread on the adapter that matches your drip tubing size, then push the tubing into the compression fitting or over the barb. Make sure the tubing is fully seated.

Step 7: Support the assembly

This step is often skipped, but it protects the faucet from strain. A full assembly can be heavy and may strain the faucet. Use a short length of flexible hose or a support bracket if needed, and avoid letting the assembly hang unsupported at an angle.

Step 8: Flush and test

Flushing removes plastic shavings and dirt from installation. Before installing end caps, turn on the water and let it run through the main line to flush out debris. Then cap the end, turn the water on and check every connection for leaks.

Troubleshooting the head assembly

Water leaks at a threaded joint. Check that the rubber washer is present and seated, then hand tighten. Replace flattened or cracked washers.

Low flow in the drip line. The filter may be clogged. Turn off the water, unscrew the filter cap and rinse the screen. Also check that the timer valve opens fully and the faucet is fully on.

Fittings popping off downstream. The regulator may be missing, installed backward or failed. Confirm the flow arrow points downstream and replace the regulator if needed.

Water dripping from the backflow preventer. Some vacuum breakers release a small amount of water when the system shuts off, which is normal. A constant leak while running suggests a damaged part.

Timer not opening. Replace batteries, check the program and confirm the faucet is turned on.

Above-ground vs in-ground drip connections

The faucet assembly described here is the simplest way to run drip from household water. Drip zones can also be connected to an in-ground sprinkler system using a zone valve, with a filter and pressure regulator installed after the valve. That approach lets the sprinkler controller run drip zones on their own schedule. Our guide on adding a sprinkler zone explains how to add a drip zone to an existing system.

Connecting to a hose instead of directly to the faucet

This is useful when beds are far from the house or when you want to keep the faucet free for other uses. You can also run a garden hose from the faucet to a drip area some distance away, placing the filter and regulator at the end of the hose near the beds. Our guide on connecting drip irrigation to a garden hose covers this setup.

Why each part matters

Backflow prevention. When water pressure drops, for example when a city main is repaired or a fire hydrant is opened, water can be pulled backward through plumbing. Drip lines lie in soil, mulch and sometimes fertilizer, so water in them is not safe to drink. A backflow preventer or vacuum breaker stops that water from entering household pipes. Many plumbing codes require one on any irrigation connection.

Filtration. Drip emitters have very small openings. Sand, rust flakes, scale and organic debris clog them quickly. A filter at the head of the system catches most of this before it reaches the emitters. Without one, you may spend more time unclogging emitters than gardening.

Pressure regulation. Household water pressure is often far higher than drip tubing and fittings are designed for. Without a regulator, fittings can pop apart, emitters can blow off and tubing can split. A regulator also keeps emitter output consistent, since many emitters deliver their rated flow only within a certain pressure range.

Choosing components

• Thread size: most outdoor faucets in the U.S. use standard garden hose threads. Match timers, backflow preventers, filters and regulators to those threads.
• Filter mesh: finer mesh catches more but clogs faster; follow the emitter manufacturer's recommendation.
• Regulator pressure: choose one suited to your tubing and emitters, usually listed in the kit or product specifications.
• Flow rate: regulators and filters have maximum flow ratings; make sure they can supply the total flow of your emitters.
• Material: brass and quality plastic both work; avoid cheap parts with thin threads that crack.

Running more than one zone from one faucet

A single faucet can feed more than one drip zone using a hose splitter with individual shutoffs or a dual-outlet timer. Each outlet then needs its own filter and regulator, or you can place a shared filter and regulator before the splitter if the flow rating allows. Running zones at different times keeps pressure steady and lets you water plants with different needs separately.

Common mistakes

• Installing the regulator before the filter, so grit reaches the regulator.
• Skipping backflow protection.
• Overtightening plastic threads and cracking them.
• Leaving out rubber washers, causing leaks.
• Letting the assembly hang unsupported from the faucet.
• Forgetting to flush the main line before capping it.
• Leaving the assembly outside in freezing weather.

Our roundup of the best drip irrigation kits compares kits that include a complete head assembly.

Tools you need

• Your drip kit or individual components
• Teflon tape for non-hose threads, if the instructions call for it
• Spare rubber hose washers
• Tubing cutter or sharp pruners for clean, square cuts on drip tubing
• A bucket to catch water while flushing

No special tools are needed for most hose-thread connections, which are designed to be hand tightened.

Planning the main line from the assembly

From the adapter, the main drip line runs to the beds, with smaller distribution tubing or emitters branching off. Keep the main line as short and direct as practical, avoid sharp kinks and use stakes to hold it in place. Check the maximum run length and flow for your tubing size, since long runs with many emitters can lose pressure toward the end. For emitter choices, see our guide on drip emitter size.

Maintenance

• Clean the filter regularly, more often at the start of the season and if your water carries sediment.
• Check for leaks at each threaded joint and tighten by hand if needed.
• Replace washers in threaded fittings when they flatten or crack.
• Replace timer batteries at the start of each season.
• Winterize in freezing climates by removing the timer, filter and regulator, draining them and storing them indoors.

If emitters clog despite a clean filter, see our guide on clogged drip irrigation.

The EPA WaterSense program highlights drip irrigation as an efficient way to water beds and gardens.

The bottom line

A reliable drip irrigation head assembly connects, in order, the faucet, an optional timer, a backflow preventer, a filter, a pressure regulator and the tubing adapter. Hand tighten each part with its washer, point every flow arrow downstream, support the assembly so it does not strain the faucet, flush the main line before capping and clean the filter regularly. Remove and drain the assembly before freezing weather.
